1911 Drop In Beavertail Safety

 Post Reply Post Reply
Author
Message
srma63 View Drop Down
Baby Auto Mag
Baby Auto Mag


Joined: 31 Dec 2017
Location: Lakewood
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote srma63 Quote  Post ReplyReply Direct Link To This Post Topic: 1911 Drop In Beavertail Safety
    Posted: 02 Jan 2018 at 6:09pm

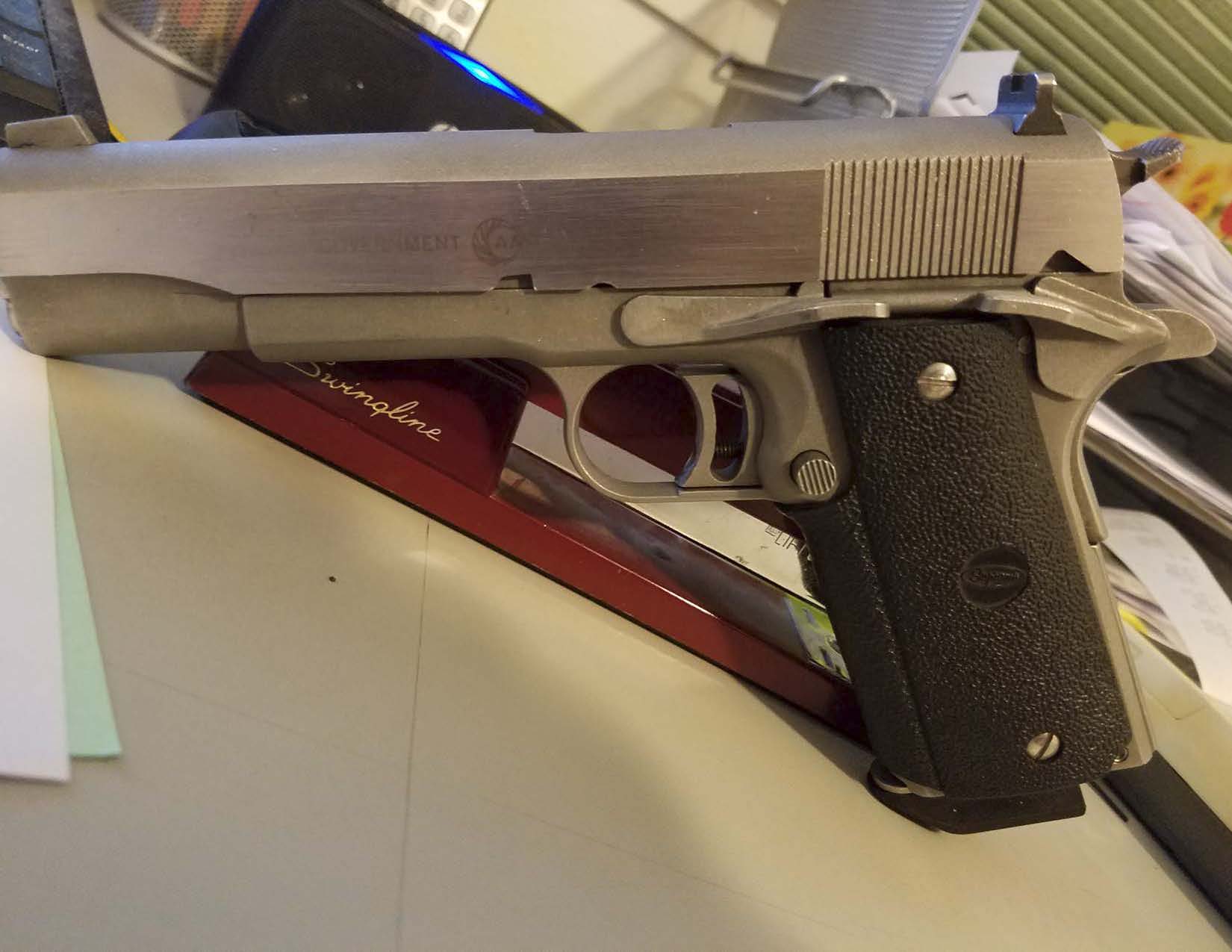

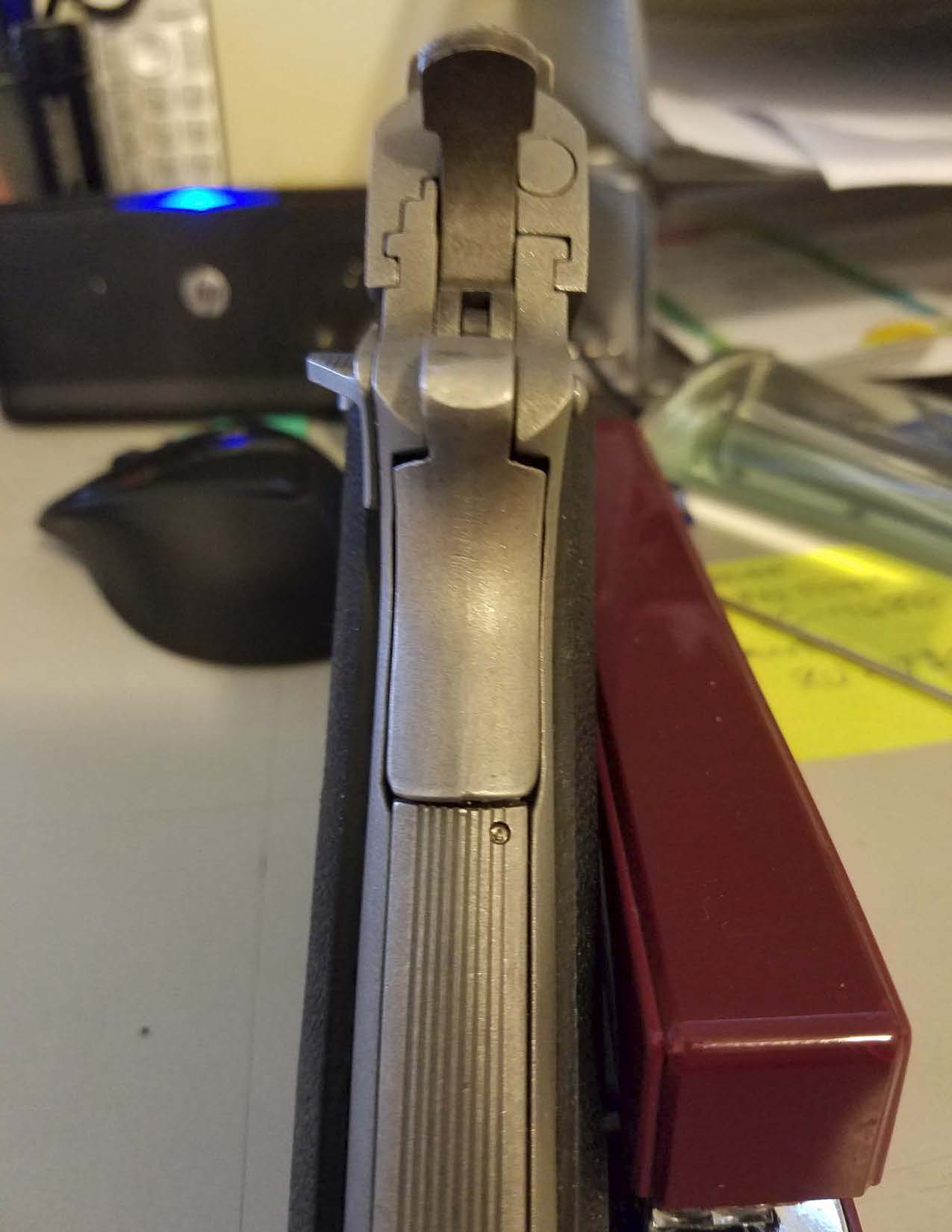

Does anyone know of a source for a SS beavertail drop in (i.e., not milling or inletting required) for a mid-80s (S/N A254XX) AMT Government Model?  Nothing fancy (e.g., Wilson Combat Custom Shop), just functional.  I've tried EGW.com, but  their beavertails all require quite a bit of grinding on the gun itself.

Back to Top
TRX302 View Drop Down
Callahan's Auto Mag
Callahan's Auto Mag
Avatar

Joined: 02 Dec 2011
Location: Arkansas
Status: Offline
Points: 606
Post Options Post Options   Thanks (0) Thanks(0)   Quote TRX302 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2018 at 6:24pm
Unfortunately the back of the frame has to be radiused so the safety can move without binding. A regular beavertail can't be installed unless you modify the frame to accept it. Just for fun, there are at least three different "common" radii...

However, "back in the day" Armand Swenson (and likely others) made some safeties with extended tabs on the top, extending back under the hammer, that did the same basic job as a beavertail in preventing hammer bite. Those were drop-ins, as much as 1911 parts ever are.

As far as I know nobody makes such a thing any more, but you could mill or grind to narrow an ordinary beavertail at the top so it would work the same.

If you decide to go with a conventional beavertail Midway and Brownell sell a file fixture that you attach to the back of the frame; it uses two hardened buttons to guide a file. It's a quick job to remove the necessary metal with a file.
Back to Top
AUTOMAG View Drop Down
Callahan's Auto Mag
Callahan's Auto Mag
Avatar

Joined: 08 Mar 2008
Location: Virginia Beach
Status: Offline
Points: 1014
Post Options Post Options   Thanks (0) Thanks(0)   Quote AUTOMAG Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2018 at 8:04pm
This is from Brownells for a Wilson Combat "drop-in" beavertail grip safety. I hope this helps.

High Ride Comfort For Colts, Without Frame Cutting

Install the comfort and convenience of a high ride beavertail safety on your Colt 1911 Auto without cutting or altering the frame. Deeply curved shape lets the pistol sink farther into the web of your hand for improved recoil control and shooting comfort. Raised pad at the base ensures positive safety engagement even with a high-thumb hold. Wide beavertail eliminates painful hammer bite. All models must be used with Commander-style or bobbed hammers only. Minor fitting of trigger engagement area may be required for proper operation.

https://youtu.be/AW5Zb0V5c8o



429BG GOVT BLUE DROPIN BT GRIP SAFETY
Blue Govt. Safety

Mfr Part: 429BG

$39.99

In Stock


$35.99

In Stock


$37.99

In Stock

Hand: Right

Finish: Stainless Steel

Style: Grip

View Dream Gun


$37.99

In Stock

Hand: Right

Finish: Stainless Steel

Style: Drop-In

View Dream Gun

"This is the 44 Magnum Auto Mag and holds a 300 grain cartridge and if properly used it can remove the fingerprints"!!!
Back to Top
jw4570 View Drop Down
Callahan's Auto Mag
Callahan's Auto Mag


Joined: 08 Mar 2008
Location: FL
Status: Offline
Points: 1211
Post Options Post Options   Thanks (0) Thanks(0)   Quote jw4570 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2018 at 11:10pm
That's the only one I know of.  Have one on a Combat Elite as I didn't want to cut the frame.

I like the Ed Brown one that you cut the frame myself, for a shooter, but for this one gun I wanted to shoot a little more, I bought the drop in, and yes, it will most likely require fitting, just fit by filing on the safety, not the frame if necessary.  And you will need the commander hammer.  I just bought a strut and pin too, and then put the original hammer with strut, pin, and grip safety in a bag for safe keeping.  Now where did I put that????

JW
Back to Top
jw4570 View Drop Down
Callahan's Auto Mag
Callahan's Auto Mag


Joined: 08 Mar 2008
Location: FL
Status: Offline
Points: 1211
Post Options Post Options   Thanks (0) Thanks(0)   Quote jw4570 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2018 at 11:11pm
Oh, and it doesn't give you the same high grip, but helps with hammer bite.
